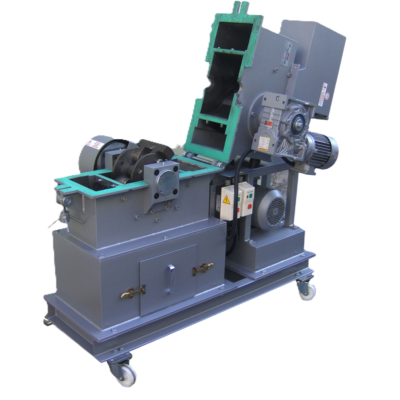

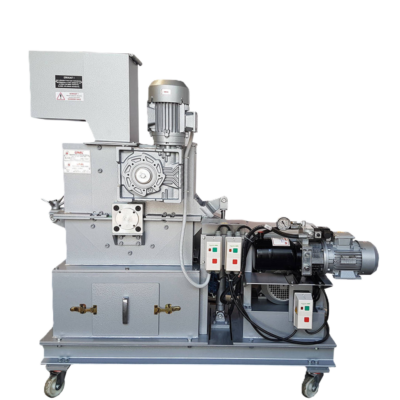

Laboratory Hammer Crusher also coal crusher
Laboratory Hammer Crusher also coal crusher
Crushing

Hammer Crusher

DESCRIPTION

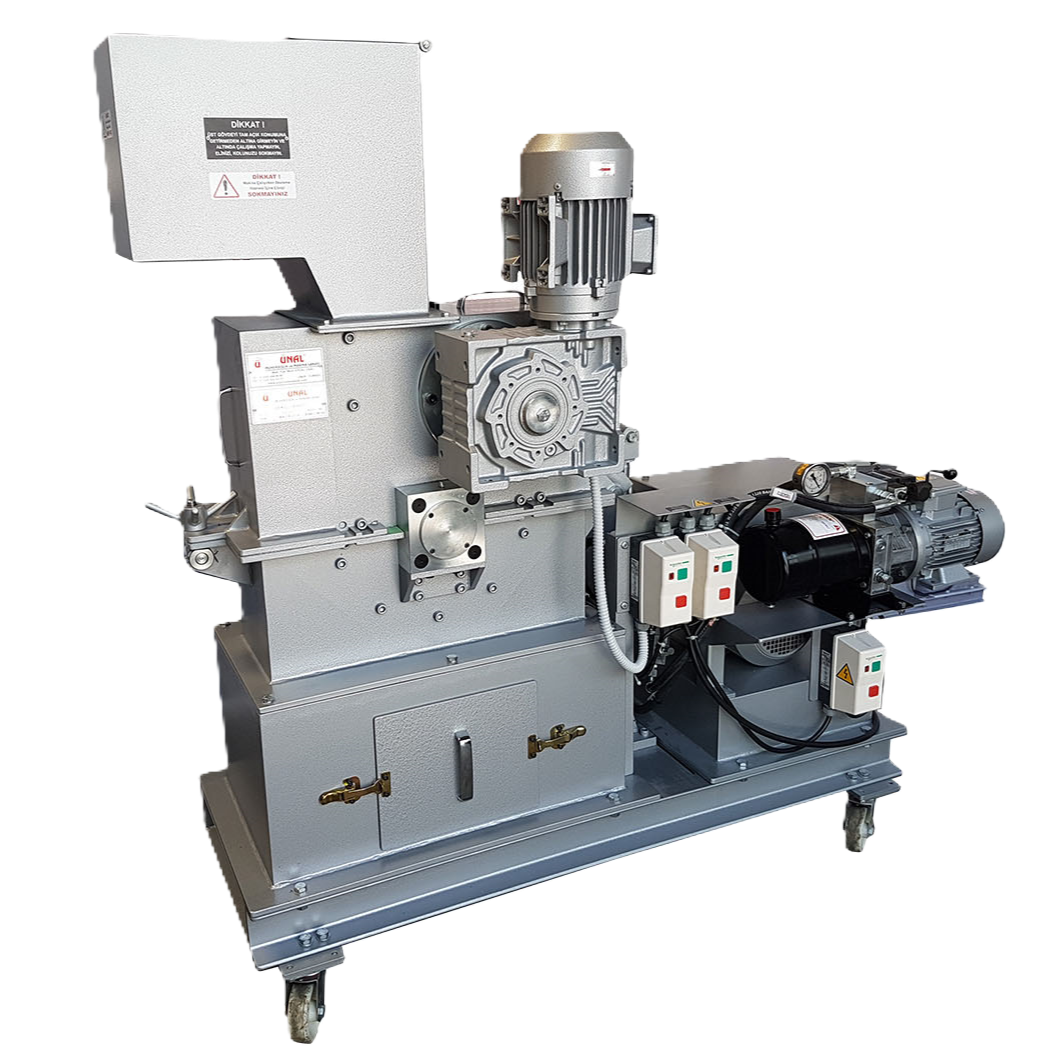

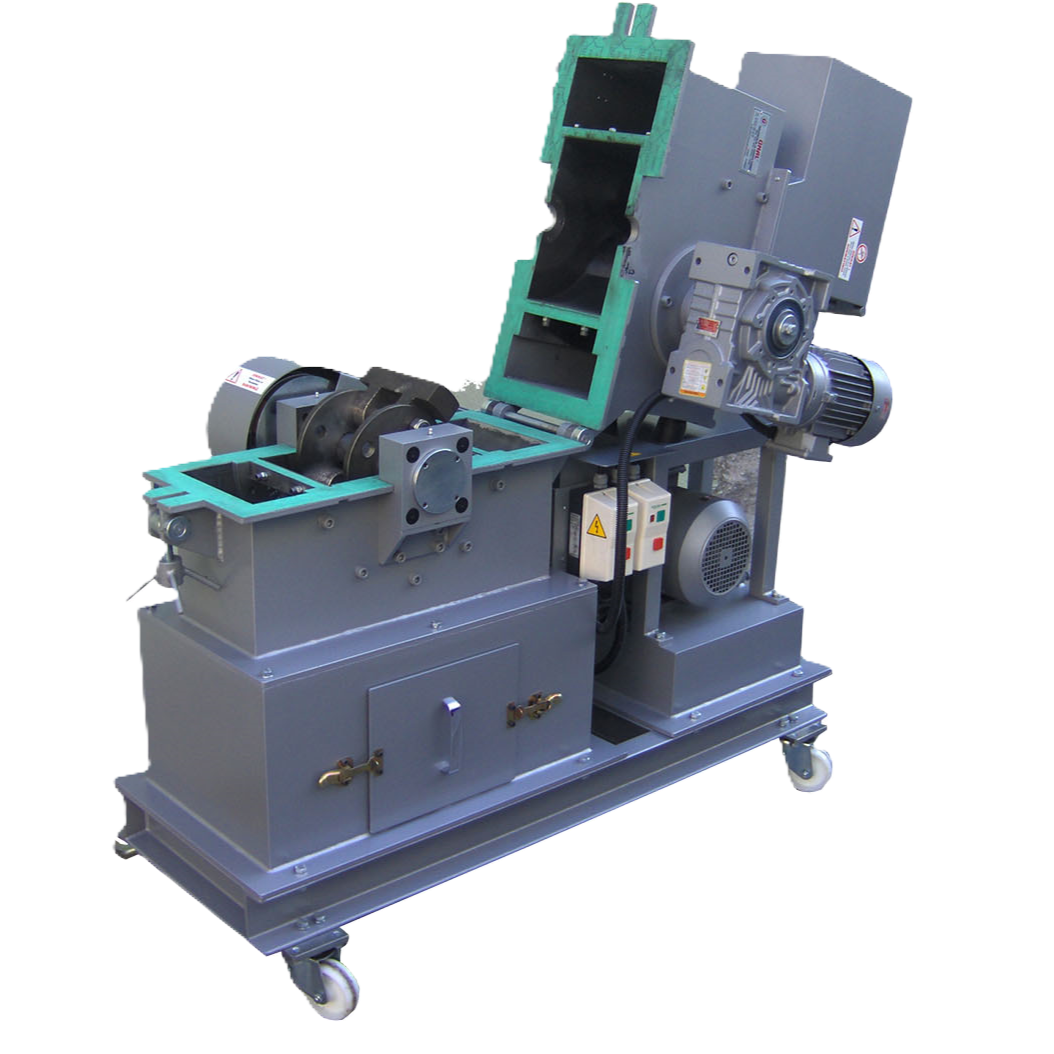

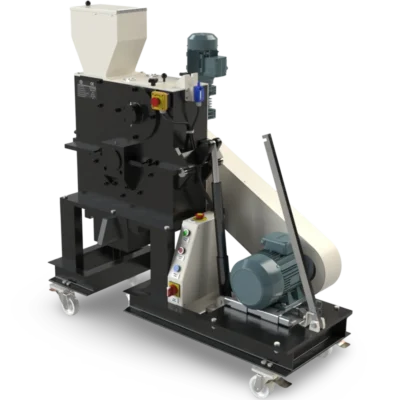

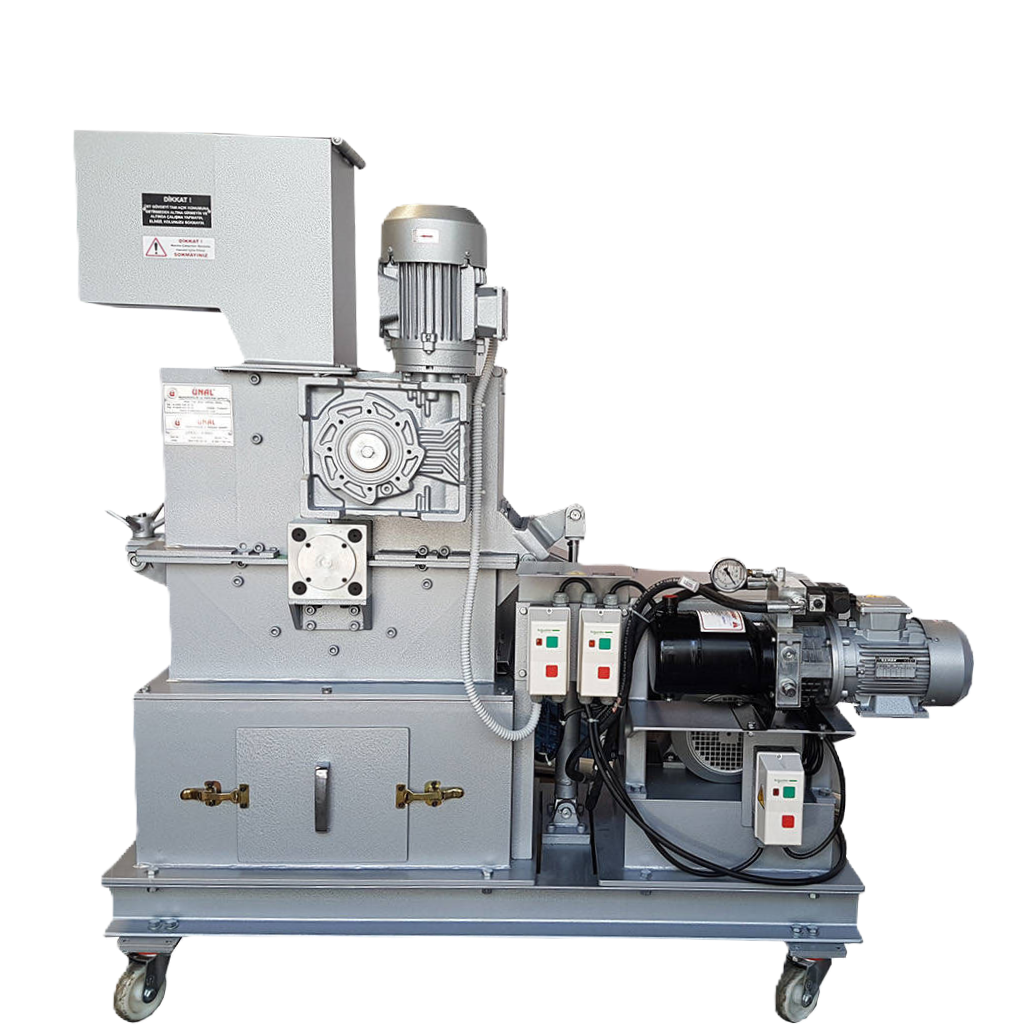

The Hammer Crusher is a high-performance machine designed for the rapid, safe, and efficient size reduction of medium-hard, hard, and brittle materials. It serves as an ideal solution for pilot scale studies in laboratory settings.

High moisture content in materials can make crushing challenging with conventional crushers. However, the Hammer Crusher excels in this area, effectively handling and crushing wet and high-moisture materials with ease. Its specialized design ensures reliable performance, making it an ideal choice for applications involving materials such as coal.

Crushing Chamber Dimensions: Ø 300 x 190 mm

TECHNICAL DATA

Fields of Application Mining, metallurgy, recycling and waste recovery, geology, chemistry, plastics and polymers, iron and steel, energy, biotechnology, environmental management, construction and building, agriculture, glass and ceramics
Application Fine Crushing
Capacity 2500 kg/h*
Feeding Size < 100 mm
Final Fineness < 1 mm*
Power and Electricity 4 kW, 380 V, 3p, 50Hz
Compatible with various voltages.
Dimensions 700 x 1500 x 1600mm
Weight 650 kg
*Varies by material type, feeding size, reduction ratio, and moisture.

Ease of Crushing Materials with High Moisture Content: The Hammer Crusher provides an effective solution for crushing materials with high moisture content, such as coal.

Durability and Low Maintenance Requirement: With its robust construction and minimal maintenance needs, this machine delivers long-lasting and reliable performance.

The Hammer Crusher is designed to maximize user safety. Its feeding hopper effectively protects the user from contact risks and material rebound. The safety switch enhances operator protection by automatically stopping the machine if the cover is opened. Additionally, the emergency stop button and motor overload protection system ensure continuous safety. With these features, the Hammer Crusher provides a secure and controlled working environment in laboratory settings

Interchangeable Screens: With its interchangeable screens, the Hammer Crusher allows for the production of end products in various sizes.

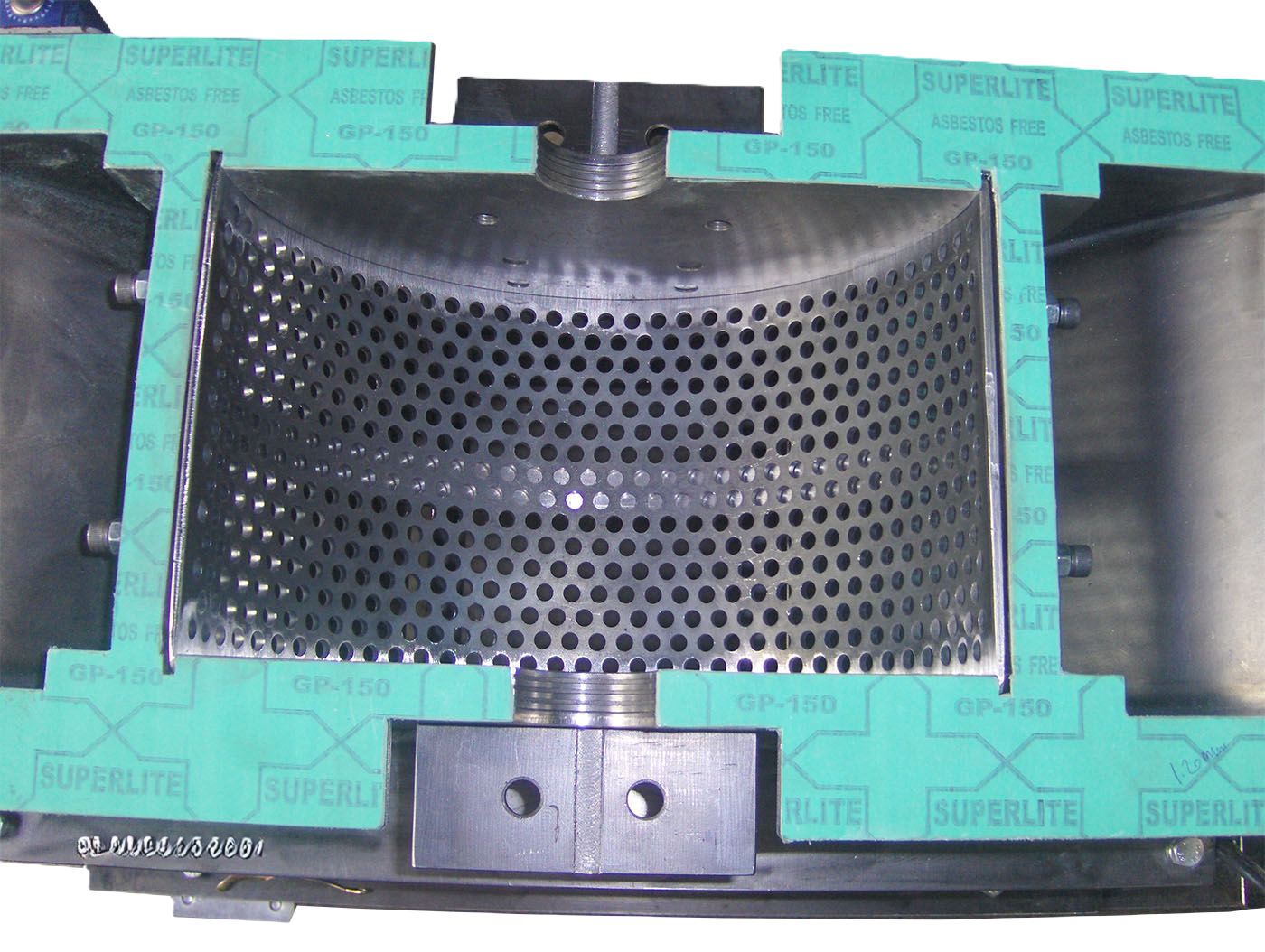

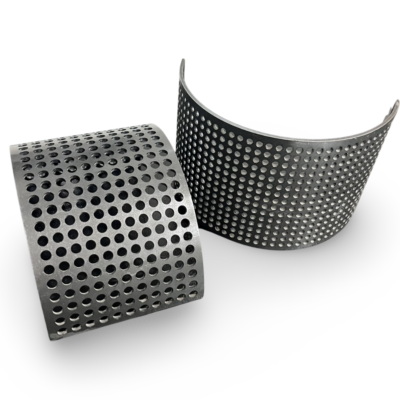

Screens with 5mm, 8mm, and 12mm mesh openings for use in the crushing chamber of the Hammer Crusher:

APPLICATION AREAS

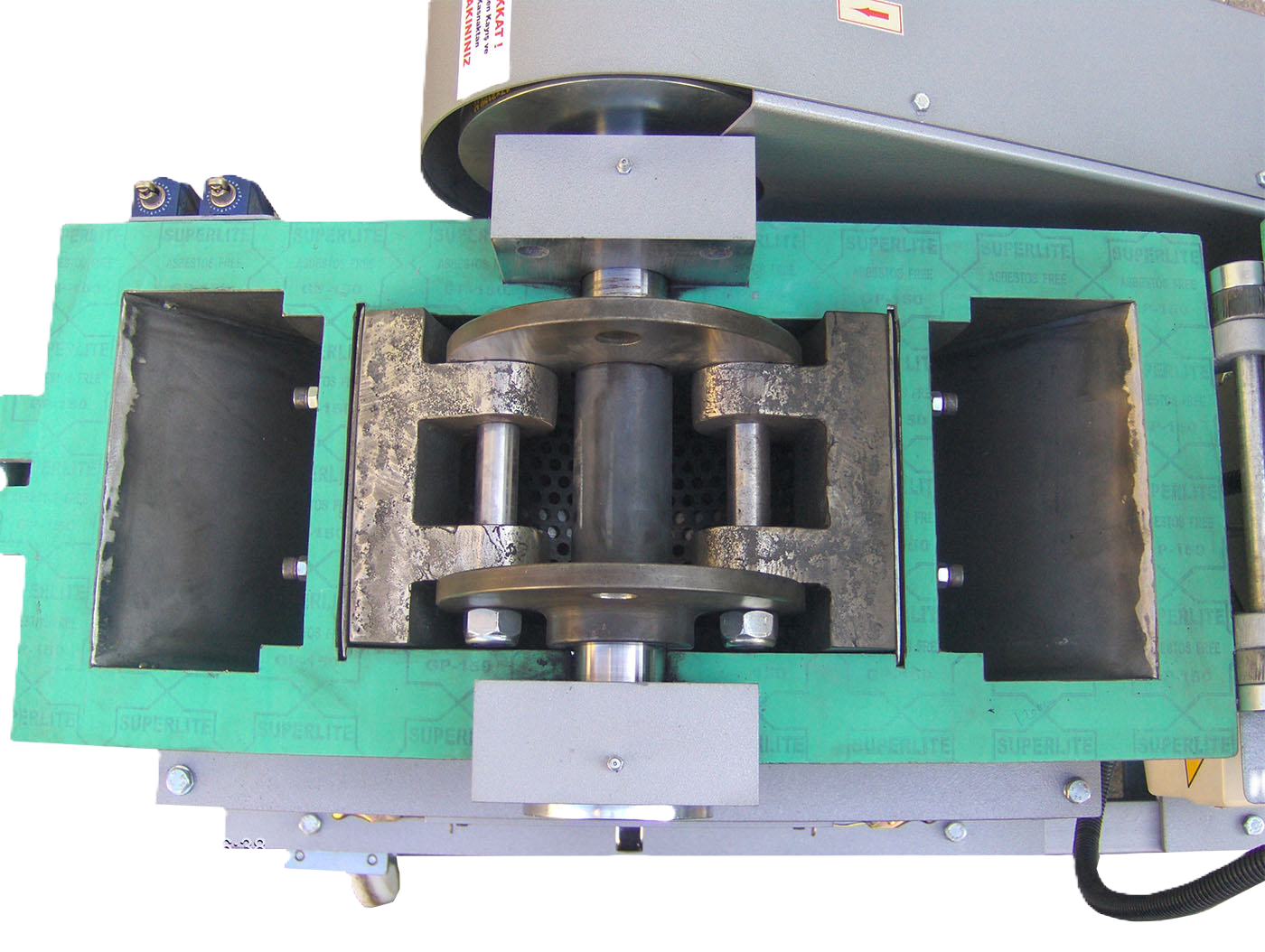

The Hammer Crusher is a machine designed for the rapid and efficient crushing of materials. During operation, the loaded material is fragmented by the cyclical movement of the hammers. When activated, the hammers rotate with the power of the motor, delivering high-speed impacts onto the material. This impact effect leads to the crushing and size reduction of the material.

The crushed material then reaches the built-in screening system. The screen has holes of specific sizes and is used to adjust the size of the material. Crushed particles pass through the screen, allowing for separation and collection based on the desired size. This system is particularly designed for processing challenging materials, such as coal with high moisture content, and offers high efficiency along with energy savings.
