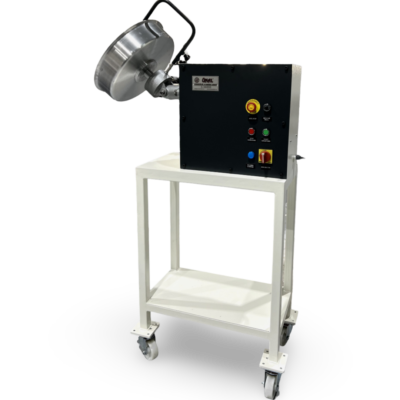

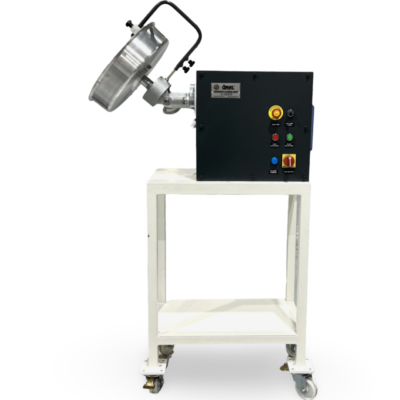

Disc pelletizer side view
Disc pelletizer side view
Disc Pelletizers

Disc Pelletizer Ø400mm

DESCRIPTION

This disc pelletizer is a compact system designed for sample preparation processes, offering high precision and flexibility. Ideal for small-scale pelletizing operations in laboratory and research environments, it ensures reliable and consistent results.

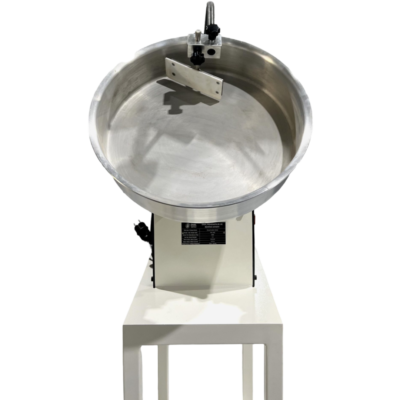

Pelletizing Disc: The device features a durable Ø400 x 100 x 1.5 mm stainless pelletizing disc, constructed from aluminum plating. This robust disc provides long-lasting performance, supporting extensive use.

Adjustable Pelletizing Speed: With an adjustable pelletizing speed ranging from 0 to 50 rpm, the device offers flexible speed options to handle different materials, ensuring optimal pelletizing outcomes.

Variable Disc Angle: The disc angle can be adjusted steplessly between 0° and 45°, allowing precise control over material flow and behavior during the pelletizing process.

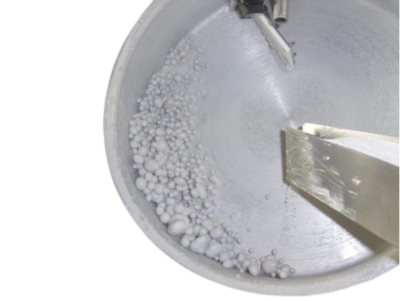

Scraper Blade: Equipped with a scraper blade made from AISI 304 stainless steel, the device effectively clears materials from the disc surface, ensuring continuous and homogeneous pellet production.

Optional Mobile Feeder: The machine can be fitted with an optional mobile feeder, which facilitates a steady and consistent material supply during the pelletizing process.

With its compact dimensions and flexible adjustment options, this disc pelletizer (also referred to as a pan granulator) enables excellent results in pelletizing a variety of materials. It is an ideal solution for small-scale laboratory applications and research projects.

TECHNICAL DATA

Fields of Application Iron Ore Pelletizing, Fertilizer Production, Cement Manufacturing, Coal and Carbon Pelletizing, Waste and Sludge Recycling
Application Pelletizing, Agglomeration, Granulation
Power and Electricity 0,75hp, 220V, 3p, 50Hz
Compatible with various voltages.
