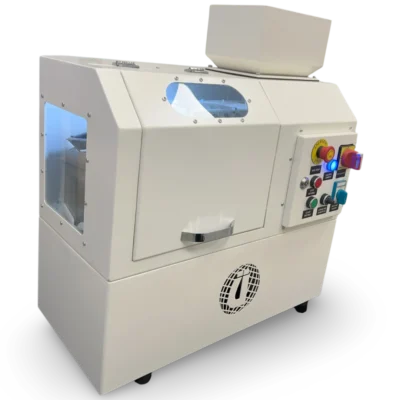

Rotary Sample Divider 8×1 Liter

DESCRIPTION

The Rotary Sample Divider 8×1 Liter is designed for benchtop use, providing a compact and practical solution for sample preparation. Its small size allows for easy placement in laboratory environments and offers flexible operation.

Despite its compact design, the machine ensures high-precision sample division, delivering 8 representative samples with ±1% weight accuracy. The efficient and user-friendly design makes it an ideal choice for laboratories, research centers, and quality control applications.

TECHNICAL DATA

Fields of Application Mining, metallurgy, recycling and waste recovery, geology, chemistry, plastic and polymer, iron and steel, energy, biotechnology, environmental management, construction and structure, agriculture, glass and ceramics, food, geology, pharmaceuticals and medical

Application Sampling, sample reduction, sample division, sample separation

Standards CE

Feeding Size < 20mm

Speed Rotational speed and feeding rate are steplessly adjustable.

Dividing Ratio 1:8, 1:4

Power and Electricity 0.37 kW, 220 V, 1p, 50 Hz

Compatible with various voltages.

Dimensions 700x470x740mm

Weight 70kg

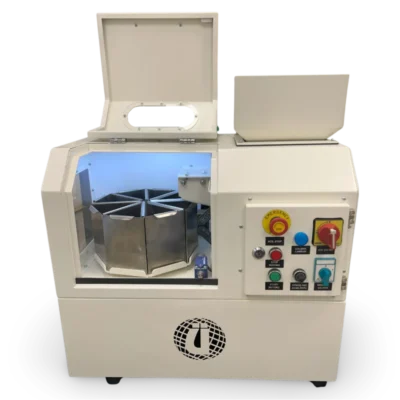

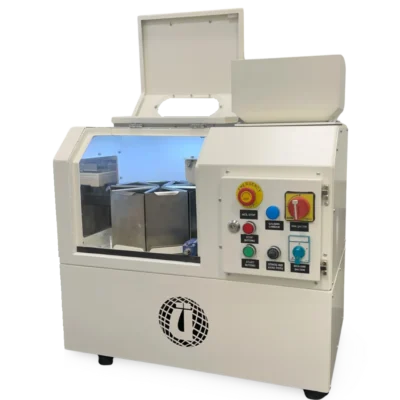

Dividing Containers: Includes 8 stainless steel, radial (triangular prism) dividing containers, each with a 1-liter capacity.
Feed Hopper: Equipped with a 5-liter stainless steel feed hopper.
Rotation Speed: The rotation speed of the containers is steplessly adjustable from 0 to 55 rpm via an electronic speed control.
Feeding Rate: The feeding rate can be steplessly adjusted via the vibratory feeder control unit.
Compact Design: Its benchtop functionality and small footprint allow for convenient use in confined spaces.

The lid safety switch prevents operation when the lid is open, ensuring maximum operator safety by avoiding potential accidents. The motor will not engage, and the operation cannot start until the lid is securely closed.

An emergency stop button is also included, providing immediate shutdown if needed. These features are essential for both operator safety and the safe operation of the machine.

APPLICATION AREAS

Our Rotary Sample Dividers are suitable for sampling a wide range of materials. Some uses include:

Bulks, coffee beans, grains, nuts, Mineral ores (copper, iron, gold, chrome ores), coffee, peanuts, hazelnuts, coal, concrete, ceramics, quartz, corundum, granite, slag and cement clinker, some industrial wastes, etc.

Coffee

Sand

Granite

Coal

Chromite

WORKING PRINCIPLE

Rotary Sample Dividers are designed to achieve high-precision sample division during sample preparation processes. These devices ensure that each sub-sample accurately represents the main sample by dividing the material homogeneously.

The operating principle of the rotary sample divider begins with transferring the sample to the device’s hopper. The sample is evenly distributed by a rotating distributor and directed into pre-determined compartments. As the sample hopper rotates, the material is divided in fixed ratios and directed into the sample containers. This rotary motion enables uniform distribution and precise division of the sample.

Since the sampling process is carried out automatically, errors due to human factors are minimized. Although sample collection may seem straightforward, it is the most critical step for accurate analysis results. The automated system ensures a reliable, repeatable, and precise sampling process.
