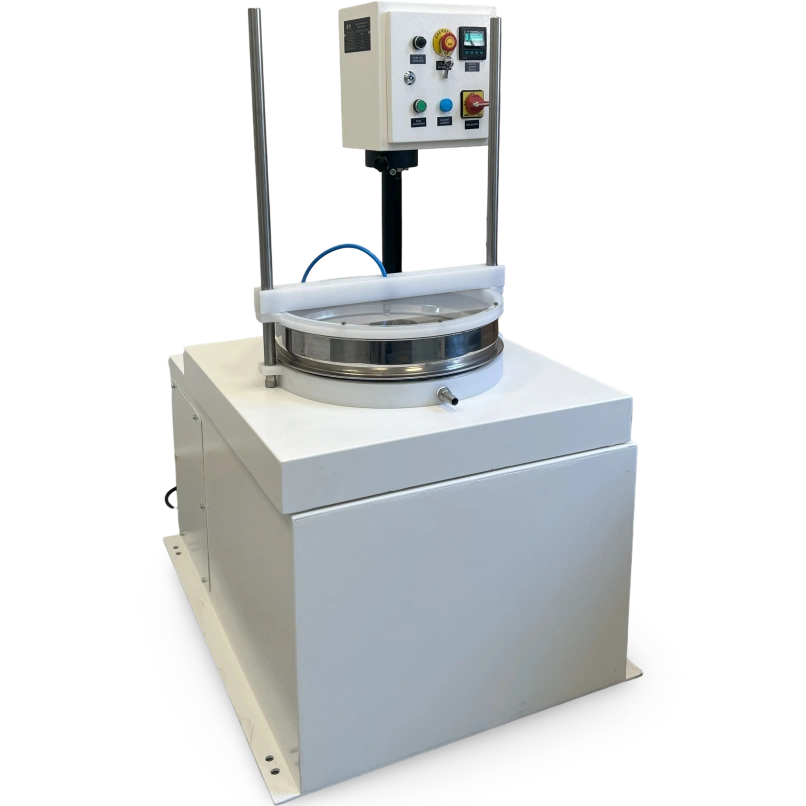

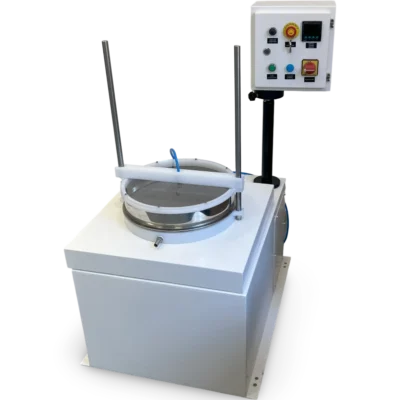

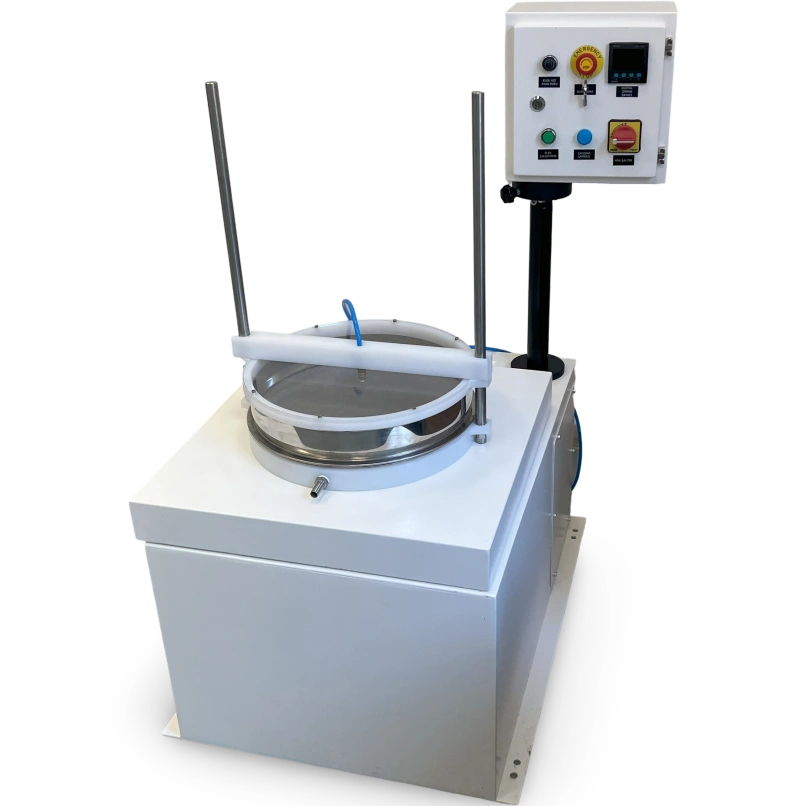

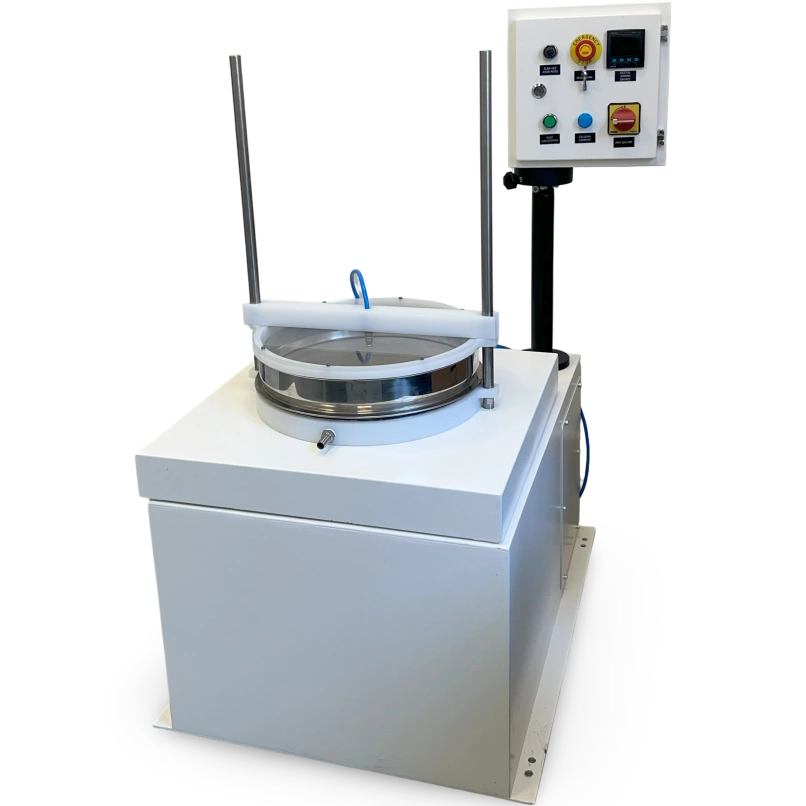

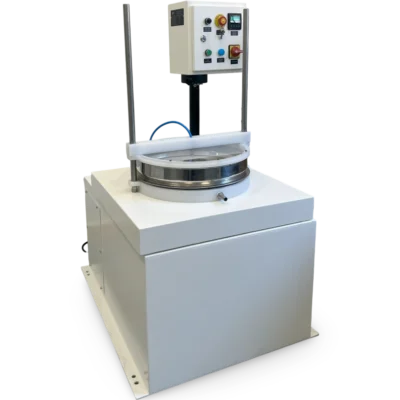

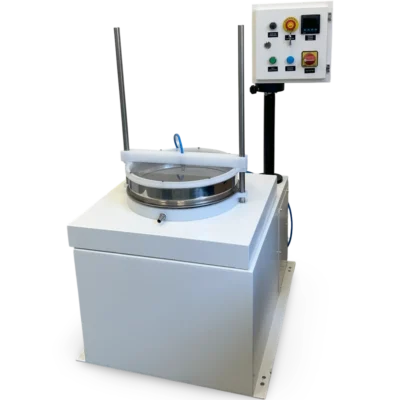

Sieve Shaker Ø400mm

DESCRIPTION

Our Sieve Shaker is a reliable solution that provides high performance in sample preparation and sieving processes in the laboratory environment. The device is suitable for both dry and wet sieving processes and can sieve a wide range of particle sizes. Thanks to its user-friendly features and adjustable shaking speed, it offers flexible working opportunities with different samples.

TECHNICAL DATA

Fields of Application Mining, metallurgy, recycling and waste recovery, geology, chemistry, plastic and polymer, iron and steel, energy, biotechnology, environmental management, construction and structure, agriculture, glass and ceramics, food, geology, pharmaceuticals and medical
Application elimination, separation
Timer Setting Available
Sieving Motion (Circular) horizontal circular motion
Sieve Dimensions Ø400mm
Speed Infinitely adjustable between 0-300 rpm
Power and Electricity 0.37 kW, 220 V, 1p, 50 Hz
Compatible with various voltages.

Multiple Sieve Capacity: The shaker accommodates stacking up to eight standard test sieves, each with a diameter of Ø400 mm, for simultaneous use.

Suitable for Dry and Wet Sieving: Compatible with both dry and wet sieving processes, adapting to various sample preparation needs in the laboratory.

Wide Sieving Range: Operates with sieves from 20 μm to 20 mm mesh size, allowing efficient separation across diverse particle sizes.

Sieve Accessories: Includes a bottom collecting pan and a top cover suitable for both dry and wet sieving applications as standard.

WORKING PRINCIPLE

Sieve Shaker is a sample preparation device that allows materials to be separated into certain size ranges. The device works with the help of Ø400 mm sieves placed inside. The process takes place with these steps:

  • Sample Preparation: The sample is poured onto the top of the sieves arranged on top of each other placed inside the device. Each of the sieves has a certain mesh size and the material is classified according to this mesh size.
  • Shaking Motion: The device produces a shaking motion to pass the sample through the sieves. This movement allows the materials inside the sieves to pass through the sieve eyes. During the sifting process, the device makes an infinitely adjustable shaking movement at a speed of 0-300 rpm.
  • Separation of Particles: The sample poured from the top is sieved in layers depending on the mesh sizes of the sieves. While the larger pieces remain in the upper sieves, the smaller pieces pass through the smaller sieves and are collected in the bottom layer.
  • Collecting the Results: After the sieving process is completed, each of the sieves is removed one by one and the materials collected in each sieve are analyzed. The lower collection container collects the smallest sizes of materials.

The device is suitable for both dry and wet sieving processes. In wet sieving, the material is sieved with water, thus ensuring more efficient separation of especially fine particles.
