Mixing & Homogenizing

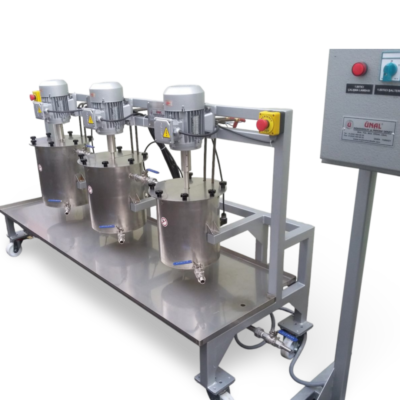

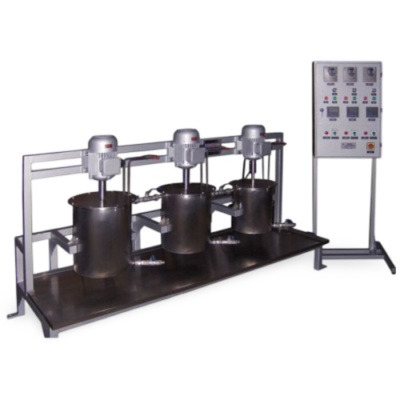

Triple Mixing Tank Assembly

DESCRIPTION

Triple Mixing Tank System consists of three interconnected, cascading tanks made from AISI 316 stainless steel, designed to provide high efficiency and flexibility for mixing and heating various materials in sample preparation laboratory applications.

System Features

  • Stainless Steel Tanks: The system comprises three tanks, each crafted from AISI 316 stainless steel. This material offers high corrosion resistance and long-lasting durability.
  • Motor and Speed Control: Each tank is equipped with a 1 hp, 220 V, 3-phase, 50 Hz motor operating at 1000 RPM. Each motor has a dedicated digital speed control device, enabling precise control over the mixing process.
  • Temperature Control: Each tank includes a digital temperature control device and a thermocouple, allowing for continuous monitoring and maintenance of the desired internal temperature.
  • Heating System: Each tank is fitted with a 2 kW electric heater to heat materials during mixing, enhancing the system’s overall efficiency.

The Triple Mixing Tank System provides an integrated solution for mixing and heating materials. With its stainless steel construction, digital control systems, and powerful heating elements, it delivers high performance and reliability in laboratory and pilot applications.

TECHNICAL DATA

Application Conditioning, Suspension, Emulsification, pH Adjustment, Heating
Compatible with various voltages.

Stainless Steel Tanks: The system consists of three tanks, each made from AISI 316 stainless steel, which offers high corrosion resistance and durability for long-term use.

Motor and Speed Control: Each tank is equipped with a 1 hp, 220 V, 3-phase, 50 Hz electric motor operating at 1000 RPM. Each motor has its own digital speed control device, allowing for precise adjustment of the mixing process.

Temperature Control: Each tank is fitted with a digital temperature control device and a thermocouple, enabling continuous monitoring and maintenance of the desired internal temperature.

Heating System: Each tank includes a 2 kW electric heater to heat materials during the mixing process, improving the system’s efficiency.

The Triple Mixing Tank System provides an integrated solution for mixing and heating materials. With its stainless steel construction, digital control systems, and powerful heating elements, it ensures high performance and reliability in laboratory and pilot applications.
