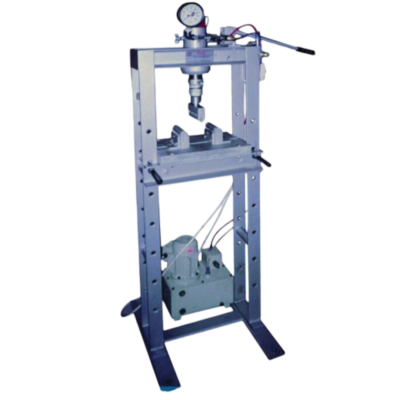

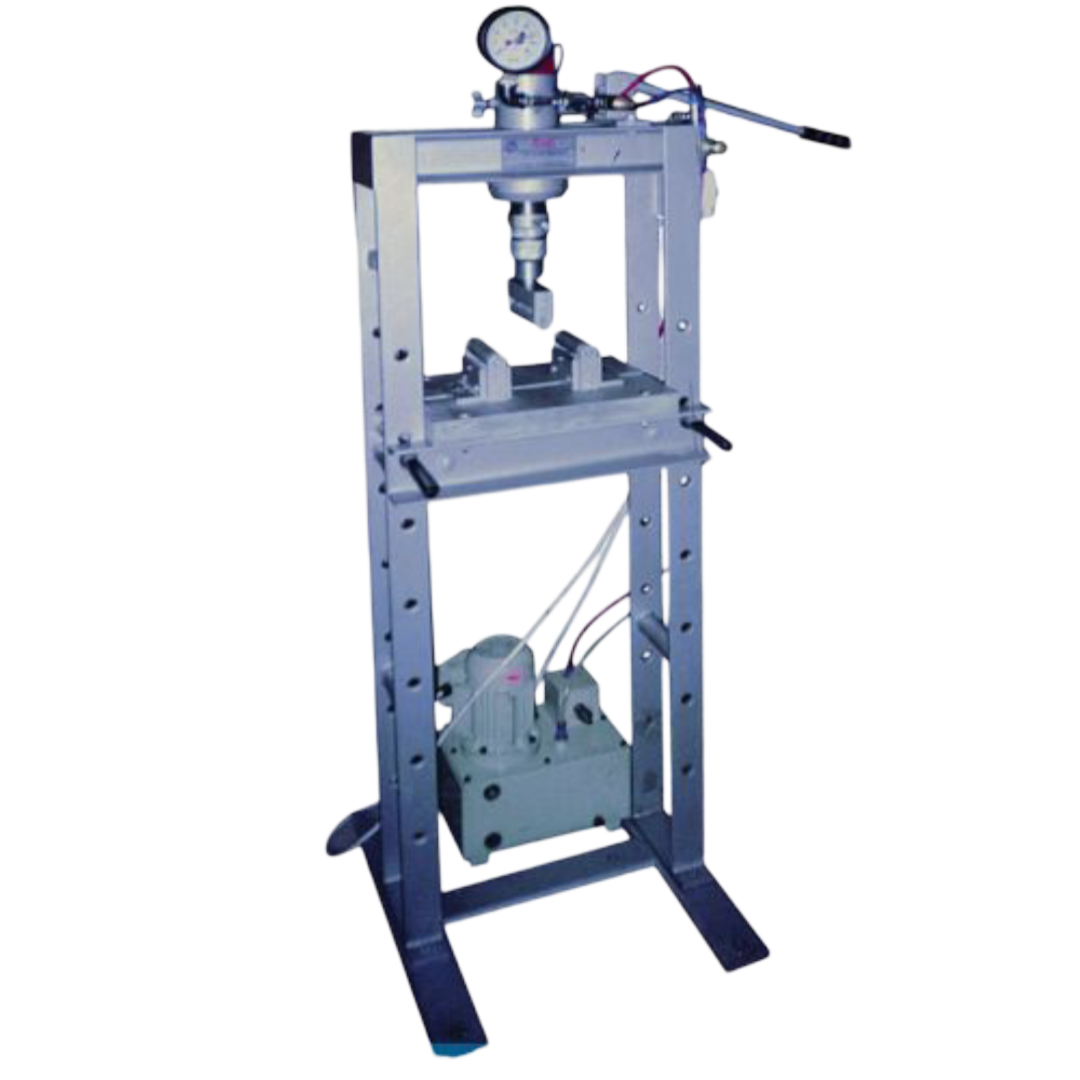

Flexural and Transverse Testing Machine 10 Tons

DESCRIPTION

This testing press is a high-performance device designed to measure the bending, twisting and compressive strength of building materials. It has a maximum capacity of 10 tons and offers an ideal solution for different testing needs. The loading speed can be adjusted steplessly with the sensitive speed adjustment device, so that the desired loading speed can be reached during the tests.

  • Vertical clearance between platens: 150 – 450 mm
  • Horizontal clearance between columns: 450 mm

The press is equipped with two precision double-dial pressure gauges with a diameter of Ø160 mm. One of these gauges can measure up to 1 tonf for low pressure applications, and the other can measure up to 10 tonf for high pressure applications. One of the needles remains constant at breaking load and resets when reset, which increases the sensitivity of the tests.

TECHNICAL DATA

Power and Electricity 1,5 hp, 380 V, 3 p, 50 Hz
Compatible with various voltages.
Dimensions 70 X 61 X 192 cm

Maximum Pressing Capacity: 10 tons
Loading speed can be steplessly adjusted by precise speed adjustment device
Vertical clearance between platens: 150 – 450 mm
Horizontal Spacing Between Columns: 450 mm
It has two Ø160 mm diameter precision double needle pressure gauges, one for low pressure applications up to 1 tonf, the other for high pressure applications up to 10 tonf (one of the needles remains constant at breaking load and is reset when reset).
