Jaw Crusher CK50

DESCRIPTION

Unal CK50 Jaw Crusher is the ideal solution for fast, safe, and efficient crushing of medium-hard, hard, brittle, and abrasive materials on a laboratory scale.

With over 35 years of experience in manufacturing laboratory equipment, we at Unal Engineering and Machinery Industry are proud to present our expertly manufactured Laboratory Type Jaw Crusher. This product offers a versatile and powerful solution for a wide range of laboratory and pilot-scale sample preparation.

Since 1987, we have continuously developed and enhanced the features of our jaw crusher to meet our customers’ needs. Our expertise has made us the preferred choice for many institutions and companies in Turkiye and around the world.

  • Ultra-Fine Crushing Precision: Equipped with precision-ground jaws and a 0 mm jaw adjustment capability, the CK100 Jaw Crusher enables finely-tuned control over crushing. The jaw spacing is continuously adjustable between 0-20 mm, allowing for precise customization of the final product size, which can be reduced down to as fine as 0.5 mm*.
  • Optimized Feed Capacity: With a 50×50 mm jaw inlet opening, the crusher efficiently handles materials up to 40 mm in size, facilitating seamless processing.
  • Built for Durability: Constructed with high-quality jaw options in  heat-treated steel, or stainless steel, this crusher ensures longevity, even when processing the most challenging materials.

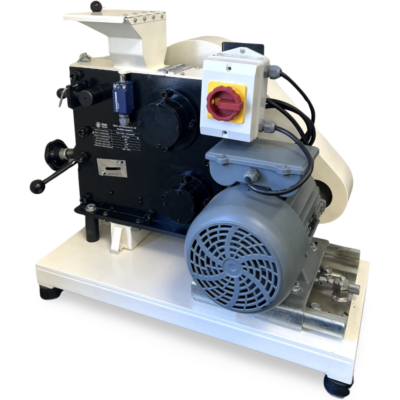

The CK50 model, equipped with a powerful 1.1kW motor and compact design, delivers superior performance for laboratory-scale applications. Its durable structure and easy-to-clean design make it an essential asset for dependable laboratory operations.

*Varies by material type, feeding size, reduction ratio, and moisture.

TECHNICAL DATA

Fields of Application Mining, Metallurgy, Recycling and Waste Recovery, Geology, Chemistry, Plastics and Polymers, Iron and Steel, Energy, Biotechnology, Environmental Management, Construction and Building Materials, Agriculture, Glass and Ceramics, Food Industry, Pharmaceuticals, and Medical Applications
Application ultra fine crushing, pre-crushing
Standards CE
Jaw Width 50x50 mm
Final Fineness 0.5mm*
Capacity < 50 kg/saat
Power and Electricity 1.1 kW, 220 V, 1p, 50 Hz
Compatible with various voltages.
*Varies by material type, feeding size, reduction ratio, and moisture.

Easy Cleaning: Designed for fast and efficient maintenance, ensuring minimal downtime.

Compact Design: Designed as benchtop. Ideal for operation in confined spaces without compromising performance.

Long-Lasting Use: Engineered for high durability, even when handling abrasive materials.

Ultra-Fine Crushing: With precision-ground jaws and a 0 mm jaw adjustment capability, our jaw crusher delivers exceptionally fine crushing results.

Durable Jaw Material: Available in heat-treated steel, or stainless steel for optimal durability.

Safety is our priority, and the Jaw Crusher is designed with multiple safety features, including overload relay, a safety switch. These features contribute to the protection of operator safety and create a safer working environment.

Replaceable Jaws: Options include high-strength steel, and stainless steel jaws, providing optimal crushing performance for various processes.

APPLICATION AREAS

CK50 Jaw Crusher model is suitable for crushing a wide range of materials. Some areas of use include:

Mineral ores (copper, iron, gold, chrome ores), concrete, ceramics, coal, glass, quartz, corendone, granite, slag and cement clinker, some industrial wastes, etc.

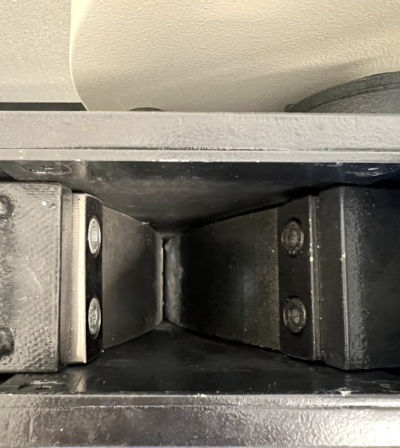

The Unal CK50 Jaw Crusher operates by compressing and crushing material between two jaws. While one jaw remains stationary, the other moves back and forth with the help of an eccentric shaft. This motion allows material to fall into the gap between the jaws, where it is compressed and broken. The distance between the jaws can be adjusted according to the desired final product size. During the crushing process, the material is gradually reduced in size as it moves toward the discharge outlet at the bottom. Once the material reaches the desired size, it passes through the jaws and exits the crusher at the discharge point.

This principle enables fast and efficient processing while providing flexibility for crushing materials into different sizes.
