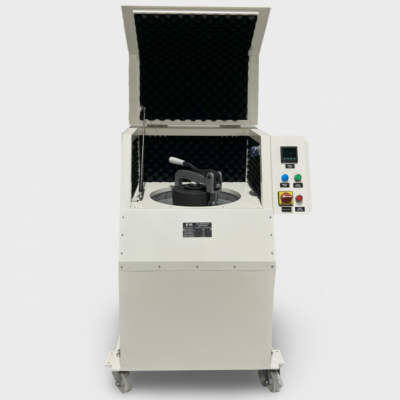

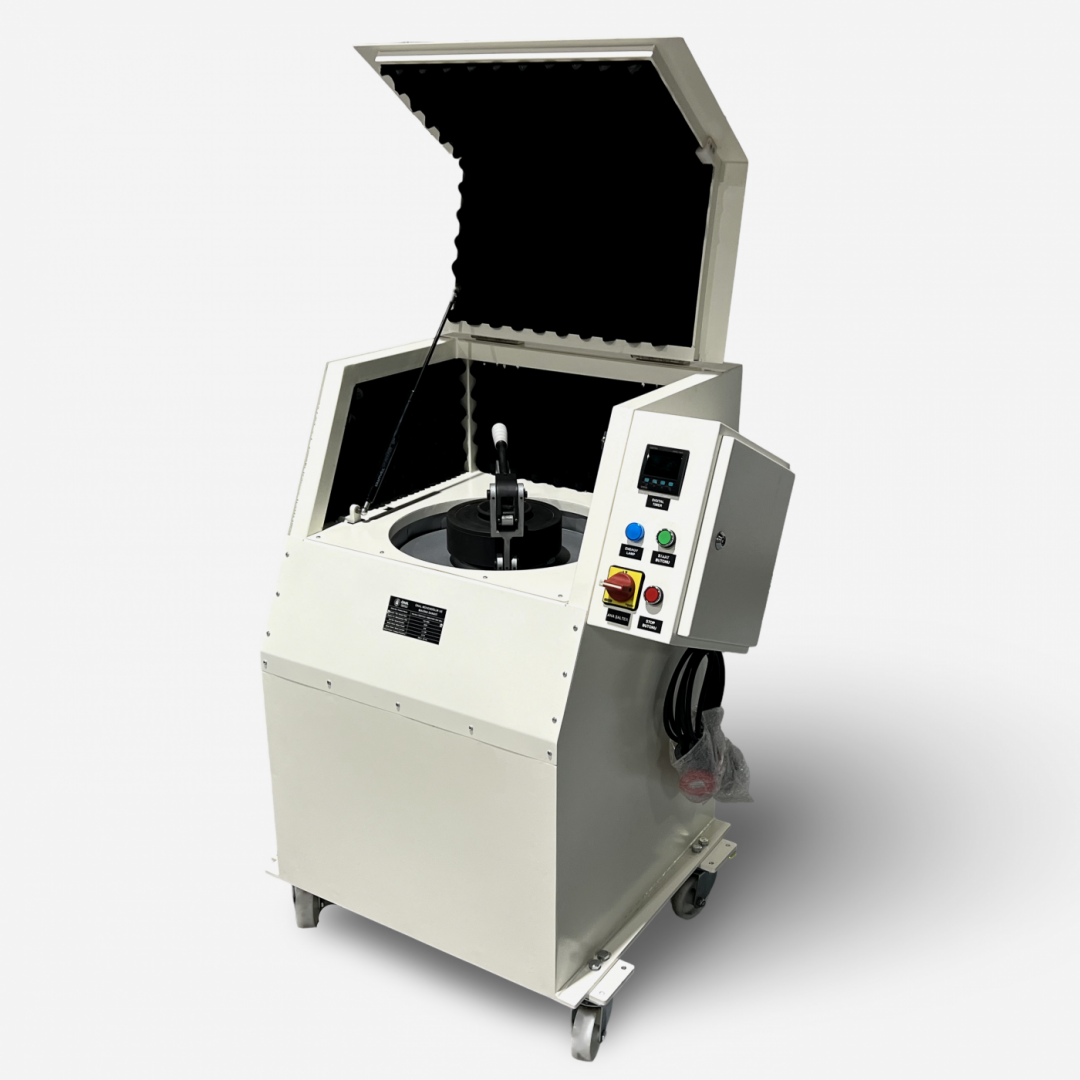

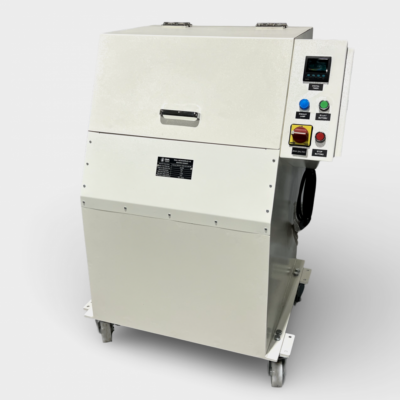

Vibratory Disc Mill HO-1000

pulveriser disc mill - pulveriser ring mill

DESCRIPTION

The Ünal HO-1000 Vibratory Disc Mill is the most powerful manual grinding machine, designed for the fast, precise, and repeatable pulverizing of medium-hard, hard, brittle, and tough materials. It is an ideal solution for mining, metallurgy, geology, and material testing laboratories, simplifying the sample preparation process.

This high-performance and reliable pulverizer is widely used in laboratories, optimized for the rapid and efficient grinding of hard and brittle materials.

The Vibratory Disc Mill (also known as a Pulverizer or Pulveriser) pulverizes samples within seconds, achieving fine particle sizes suitable for analysis, ensuring maximum accuracy in test results. With a variety of grinding set options, it offers flexibility to meet different laboratory needs.

✅ Grinding Set Capacities: 50cc, 100cc, 250cc, 400cc
✅ Grinding Set Materials: Agate, Tungsten Carbide (WC), Heat-Hardened Chrome Alloy Steel

This ensures fast and efficient pulverizing of hard, brittle, and tough materials, delivering repeatable and reliable analysis results.

TECHNICAL DATA

Fields of Application Mining, metallurgy, recycling and waste recovery, geology, chemistry, plastics and polymers, iron and steel, energy, biotechnology, environmental management, construction and building, agriculture, glass and ceramics, food, geology, pharmaceuticals and medical

Application pulverizing, grinding, size reduction

Standards CE

Feeding Size <15mm

Final Fineness < 38 μm*

Timer Setting Available.

Material of Grinding Parts Heat hardened chrome alloy steel

Speed 1000 rpm

Grinding Set Volumes 50cc, 100cc, 250cc, 400cc

Power and Electricity 1.1 kW, 380 V, 3p, 50 Hz

Compatible with various voltages.

Dimensions 1000 x 750 x 1200mm

Weight 330 kg

*Varies by material type, feeding size, reduction ratio, and moisture.

✅ The Most Powerful Manual Vibratory Disc Mill – Industry-leading efficiency and precision
✅ Versatile Grinding Set Options – Available in Agate, Tungsten Carbide (WC), and Heat-Hardened Chrome Alloy Steel
✅ Flexible Sample Capacities – Choose from 50cc, 100cc, 250cc, and 400cc grinding sets
✅ Fast & Precise Pulverizing – Achieves fine and uniform particle sizes within seconds
✅ Quiet Operation – Provides safe and comfortable use in laboratory environments

The lid safety switch, designed to prevent operation while the lid is open, ensures the highest level of operational safety. This safety system prevents the machine from operating as long as the lid remains open, thereby avoiding any potential accidents. The motor will not engage, and the operation cannot begin until the operator securely closes the lid. This feature is crucial for both operator safety and the safe operation of the machine.

APPLICATION AREAS

Our Vibratory Disc Mill is suitable for grinding a wide range of materials. Some areas of use include:

Mineral ores (copper, iron, gold, chrome ores), concrete, ceramics, coal, glass, quartz, corendone, granite, slag and cement clinker, some industrial wastes, etc.

Alumina

Chromite

Feldspar

Granite

Quartz

Working Principle

Vibratory Disc Mills operate based on the principle of mechanical compression and pulverizing between rings, specifically designed for grinding hard and brittle materials. In this device, material is compressed between interlocking rings and reduced to a homogeneous powder.

Operational Steps

Material Placement: The material to be ground is placed inside the grinding set of the disc mill.
Ring Movement: When the machine is activated, the rings continuously compress the material. This compressive action mechanically pulverises and fragments the material.
Application of Forces: The material is pulverised between the rings. During this process, the forces applied between the rings quickly reduce particle size, creating a fine powder.
Adjusting Grinding Time: The grinding duration can be set through the machine’s control panel. Based on the material type and desired fineness, the appropriate time is selected to complete the process.
Collection of Ground Material: Once grinding is complete, the material is retrieved from the chamber, ready for analysis or further processing.
