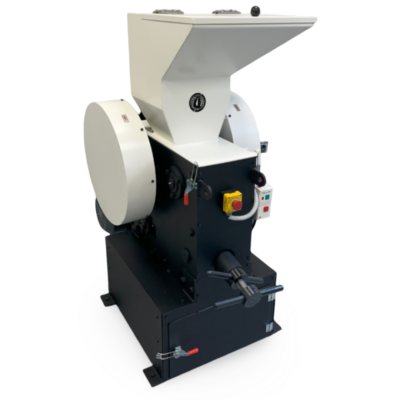

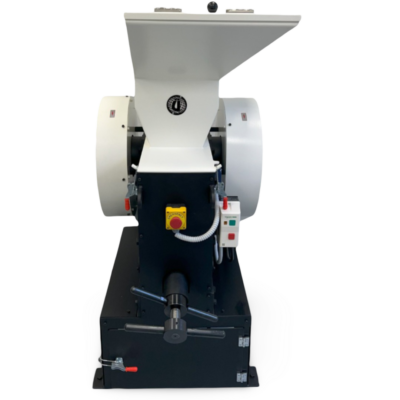

Jaw Crusher CK200

DESCRIPTION

The CK200 Jaw Crusher offers an ideal solution for fast, safe, and efficient size reduction of medium-hard, hard, very hard, brittle, and abrasive materials on laboratory and pilot scales. Its versatility allows for a wide range of applications, particularly suited to challenging materials such as ores (including copper, iron, and gold), concrete, coal, ceramics, glass, and select metals and minerals. The CK200 operates either continuously or in batch mode, providing flexibility for various laboratory and pilot-scale requirements.

With over 35 years of experience in manufacturing laboratory equipment, we at Unal Engineering and Machinery Industry are proud to present our expertly manufactured Laboratory Type Jaw Crusher. This product offers a versatile and powerful solution for a wide range of laboratory and pilot-scale sample preparation.
Since 1987, we have continuously developed and enhanced the features of our jaw crusher to meet our customers’ needs. Our expertise has made us the preferred choice for many institutions and companies in Turkiye and around the world.

Maximum Feeding Size: With a jaw opening of 200×200 mm, it efficiently handles larger materials with ease.

Crushing Adjustment and Product Size: The jaw spacing is infinitely adjustable between 0 and 40 mm, allowing the final product size to be reduced down to 2mm*.

Capacity: High crushing capacity of up to 1000 kg per hour*, depending on the type and characteristics of the material.

Durable and Long-Lasting: Crusher jaws made from high manganese steel or  high-strength steel or stainless steel ensure a long service life, even under harsh operating conditions.

Flexible Operation: The CK200 supports both continuous and batch operation, offering users enhanced flexibility.

Equipped with a powerful 7.5 hp motor and a robust structure, the CK200 model delivers high performance in processing challenging materials. Its durable construction and easy-to-clean design make it a dependable asset in laboratory settings.

*Varies by material type, feeding size, reduction ratio, and moisture.

TECHNICAL DATA

Fields of Application Mining, Metallurgy, Recycling and Waste Recovery, Geology, Chemistry, Plastics and Polymers, Iron and Steel, Energy, Biotechnology, Construction and Building Materials, Agriculture, Glass and Ceramics, Food Industry, Pharmaceuticals, and Medical Applications
Application Pre-crushing, Coarse Crushing
Standards CE
Jaw Width 200 x 200mm
Final Fineness -2mm*
Distance Between Jaws 0-40 mm
Capacity 1000kg/hour*
Material of Jaws High Manganese, Heat Treated Steel, Stainless Steel
Power and Electricity 7.5hp (5.5kW) - 380V 3p,1 N, 1 Earth, 50 Hz
Dimensions 97 x 85 x 160 cm
Weight 650kg

Adjustable Product Size: The final product size can be adjusted down to 2 mm, enabling precise crushing to meet specific requirements.

Durable and Long-Lasting Materials: Jaws made of high manganese steel or heat treated steel or stainless steel ensure extended performance, even with tough materials.

Extremely Fast and Easy Cleaning: Designed for practicality, the crusher allows for quick and efficient cleaning.

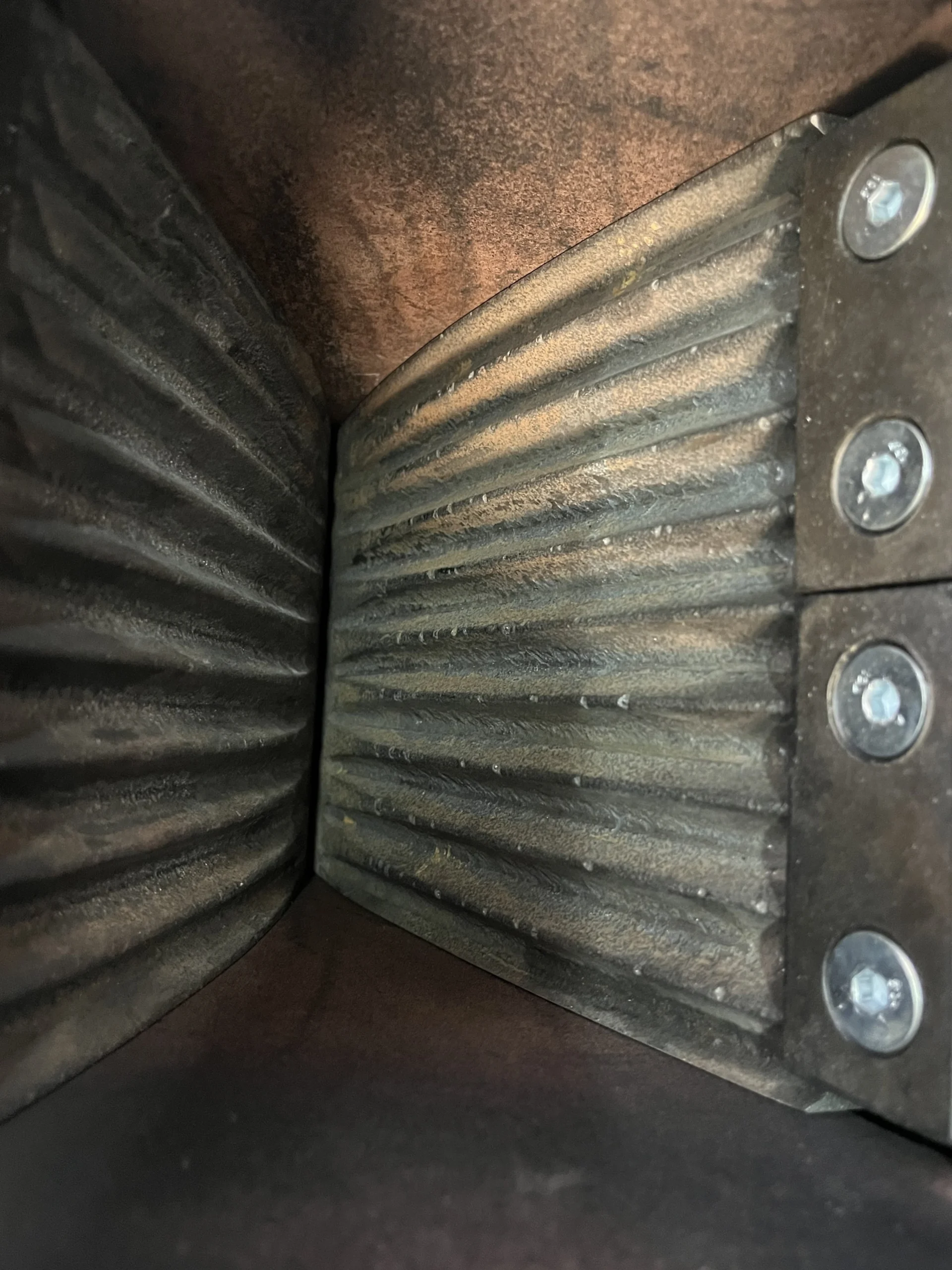

Easily Removable Jaws: Jaws can be removed and reinstalled in just two simple steps, facilitating faster maintenance and cleaning.

Fast and Easy Feeding: The 35-liter feed hopper enables quick loading of materials for efficient crushing.

Safe and Dust-Free Operation: Dust insulation minimizes particle release during crushing, ensuring a cleaner workspace.

Optional Continuous Operation: The CK200 can be adapted for continuous operation to suit your specific process requirements.

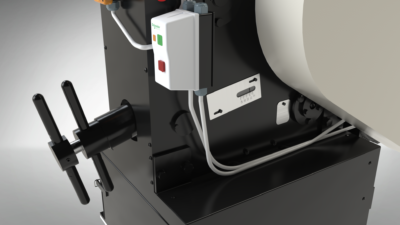

The CK200 Jaw Crusher is designed to maximize user safety. The feed hopper protects the user from contact risks and material rebound due to its specialized design. A safety switch automatically stops the machine if the lid is opened, ensuring operator safety. The emergency stop button provides an additional layer of protection in case of emergencies. Additionally, the overload relay disconnects the electrical supply in the event of excessive load, safeguarding the motor. With these safety features, the CK200 provides a secure and controlled working environment in both laboratory and industrial settings.

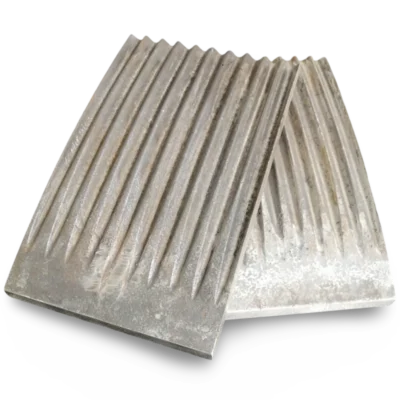

Interchangeable Jaws: A choice of high manganese steel, high strength steel and stainless steel jaws are available for different crushing applications. These options provide optimum crushing performance for different materials.

Optional Belt Conveyor: For applications requiring continuous operation, a belt conveyor can be added instead of a collection hopper to ensure continuous material transportation and uninterrupted operation.

APPLICATION AREAS

Our CK200 Jaw Crusher model is suitable for crushing a wide range of materials. Some areas of use include:

Mineral ores (copper, iron, gold, chrome ores), concrete, ceramics, coal, glass, quartz, corendone, granite, slag and cement clinker, some industrial wastes, etc.

The CK200 Jaw Crusher operates by compressing the feed material between a fixed jaw and a jaw driven by an eccentric shaft. The movement of the eccentric shaft causes the jaw to compress the material, allowing it to fall under the influence of gravity.

When the material is reduced to a size smaller than the specified discharge opening, it is directed into the removable collection hopper. The continuously adjustable jaw gap enables precise size reduction, ensuring consistent results with each crushing operation.
